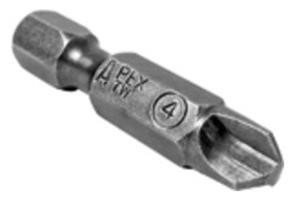

APEX BIT TW, 1/4 TRI-WING HEX POWER DRIVE

Apex 1/4'' hex power drive Tri-Wing bits.

B-TW0  Recess Size: 0 Screw Size Tension Head: 0-80 Screw Size Shear Head: - Overall Length (in./mm): 1 1/4''/ 32mm

B-TW1  Recess Size: 1 Screw Size Tension Head: 2-56 Screw Size Shear Head: 4-40 Overall Length (in./mm): 1 1/4''/ 32mm

B-TW2  Recess Size: 2 Screw Size Tension Head: 4-40 Screw Size Shear Head: 6-32 Overall Length (in./mm): 1 1/4''/ 32mm

B-TW3  Recess Size: 3 Screw Size Tension Head: 6-32 Screw Size Shear Head: 8-32 Overall Length (in./mm): 1 1/4''/ 32mm

B-TW4  Recess Size: 4 Screw Size Tension Head: 8-32 Screw Size Shear Head: 10-32 Overall Length (in./mm): 1 1/4''/ 32mm

B-TW5  Recess Size: 5 Screw Size Tension Head: 10-32 Screw Size Shear Head: 1/4-28 Overall Length (in./mm): 1 1/4''/ 32mm

B-TW6  Recess Size: 6 Screw Size Tension Head: 1/4''-28 Screw Size Shear Head: 5/16''-24 Overall Length (in./mm): 1 1/4''/ 32mm

B-TW8  Recess Size: 8 Screw Size Tension Head: 1/4''-28 Screw Size Shear Head: 5/16''-24 Overall Length (in./mm): 1 1/4''/ 32mm
