BAC #: 02A7844C0111
Tronair 02A7844C0111 Jack, 30 ton
TRONAIR
Description

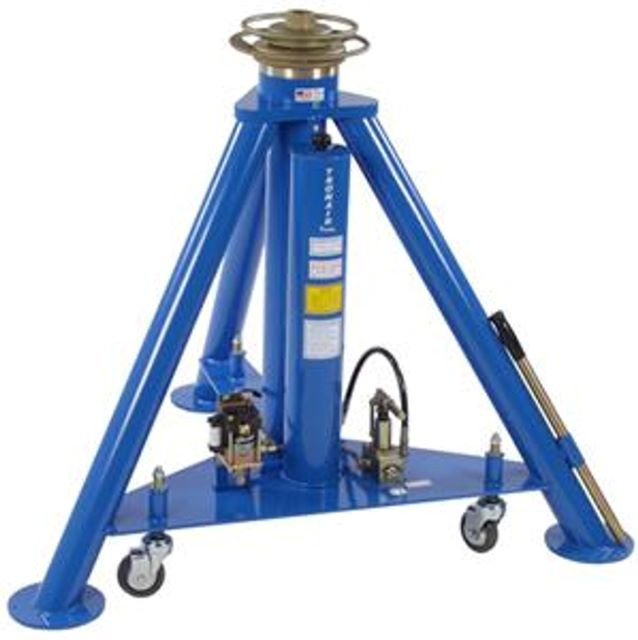

The 02A7844C0111 is a 30 ton aircraft jack with an air pump installed. These larger 30 ton jacks are used with a wide range of Gulfstream, Global Express and Boeing aircraft. Used with a set of 3 or 4 jacks, the air pump allows for ease of operation for the service technician to control all the jacks in the set from a single location. This enables them to raise or lower all the jacks at the same time. Use the K-1106 (3 jack set) or a K-4220 (4 jack set) manifold assemblies to control air pumps simultaneously.
Features
Rated Capacity: 60,000 lbs. (27.2 metric tons)
Closed Height: 46" (117 cm)
Hydraulic Extension: 27" (69 cm)
Mechanical Extension: 16" (41 cm)
Fully Extended Height: 89" (226 cm)
Weight: 500 lbs. (227 kg)
