• PNEUMATIC BOOSTER, NITROGEN

BAC #: 18-4200-1100

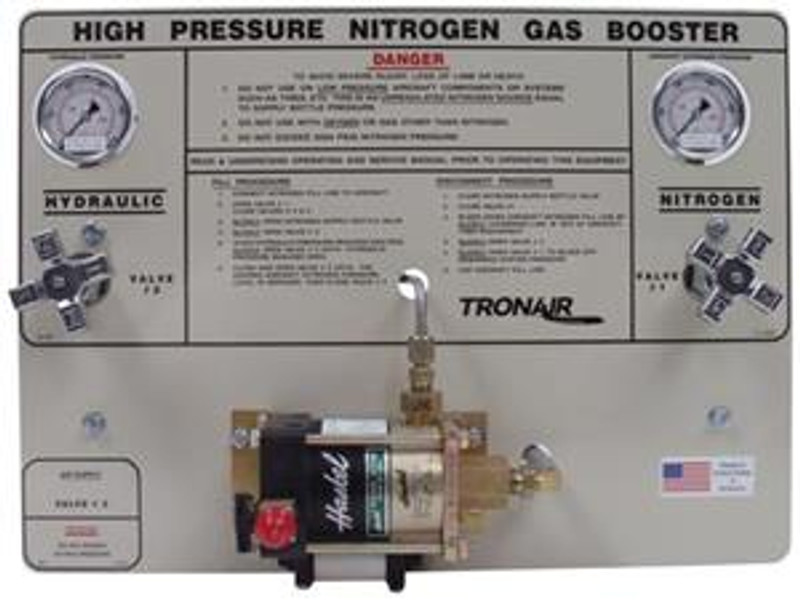

Tronair 18-4200-1100 Pneumatic Booster, Nitrogen

TRONAIR


$6,888.12

$6,888.12

/EA

Description

The Tronair 18-4200-1100 pneumatic (air) nitrogen charger provides the capability of boosting lower pressure nitrogen from the supply bottle to the required aircraft system pressure; up to 3000 psig maximum.

View AllClose

Features

This nitrogen charger (booster) utilizes a cylinder containing two interconnected pistons. Both pistons are moved by hydraulic force obtained with an air operated hydraulic pump. One piston interfaces with the hydraulic system while the other interfaces with the nitrogen system and compresses/pumps the nitrogen into the aircraft. Various valves and gauges allow semi-automatic operation. Nitrogen Output Rating: 3000 psig Maximum (Do Not Exceed) Shop Air Input: 10 SCFM @ 110 psig Maximum
Hydraulic Fluid: MIL-H-5606.
